Description

The Next Generation of Water Metering

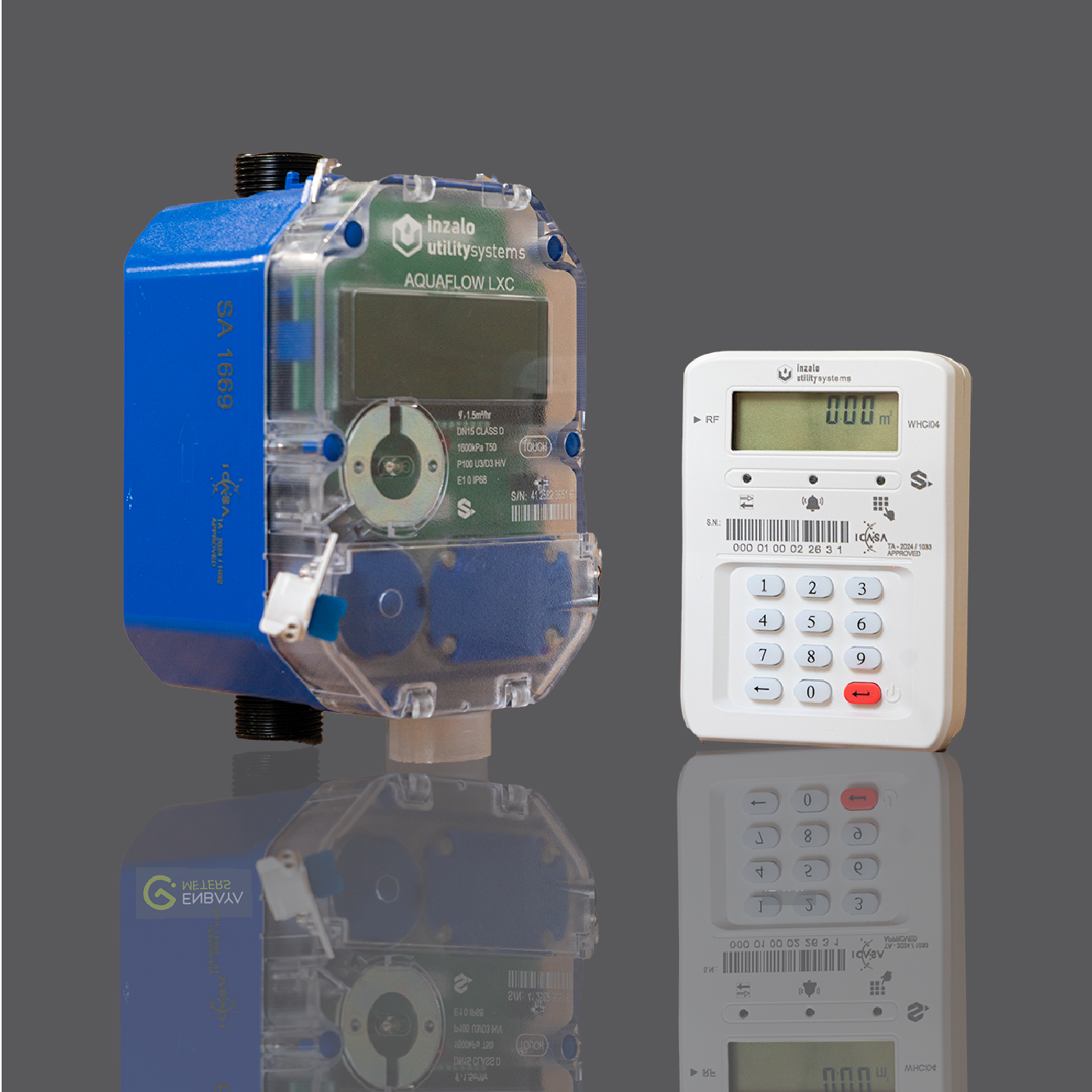

The Inzalo AquaFlow represents the pinnacle of water sub-metering technology. By utilizing ultrasonic transit-time technology, this meter measures fluid velocity without a single moving part. This means no mechanical wear, no degradation in accuracy over time, and zero interference from suspended solids like sand or silt that typically destroy standard mechanical meters.

Precision Revenue Protection

For property owners, the AquaFlow is a powerful financial tool. It is fully STS Compliant, allowing tenants to purchase water tokens via retail outlets or digital banking. The integrated motorized ball valve ensures that once the prepaid credit is exhausted, the water supply is restricted until a new token is entered.

Advanced Features and Benefits

Unrivaled Accuracy:

Class D rating ensures high precision even at the lowest starting flows (detecting leaks mechanical meters miss).

No Moving Parts:

Ultrasonic measurement is resistant to water quality issues and significantly extends the meter’s lifespan (10+ years).

Split-Unit Configuration:

Comes with a wireless Customer Interface Unit (UIU/CIU) so tenants can enter tokens and view balances from inside their home.

Built-to-Last:

UV-protected, corrosion-resistant polymer body with an IP68 waterproof rating (submersible).

Anti-Tamper Technology:

Includes internal non-return valves to prevent meter reversal and advanced sensors to alert you to tampering attempts.

Flexible Installation:

Can be mounted horizontally or vertically without losing accuracy.

Technical Specifications

Feature	Detail
Technology	Ultrasonic (Transit-time)
Accuracy Class	Class D (Exceeds Class C)
Protection Rating	IP68 (Fully Waterproof)
Nominal Pressure	16 Bar
Battery Life	8–10 Years (Field Replaceable)
Communication	Radio Frequency (RF) to CIU
Accreditation	STS, NRCS, SABS Approved
