Enbaya Meters offers a full range of prepayment meters for electricity, water, and gas. To maximise the power of sub-metering we also offer value-add services including installation, maintenance plans and self-management software for end-to-end solutions that our customers can trust.

 Complete our contact form here and one of our sales team members we will get back to you

How electricity works

Electricity is generated in power plants and transmitted through an electricity network consisting of sub stations, step-up and step-down transformers and power lines to reach the households. Household electricity supply can be broadly classified into single phase power supply and three phase power supply. Most households in South Africa receive single phase power supply. Larger households receive three phase power supply.

The easiest way to identify if you receive a single or three phase power supply is to look at the main breaker within your switchboard. If the main breaker has a single-pole breaker, your household receives a single phase power supply. If the main breaker has a three-pole breaker your household receives three-phase power supply.

Single phase power supply lets you operate electrical equipment that are compatible with 230 V AC power and three phase power supply lets you operate electrical equipment that are compatible with 230 V AC power and 415 V AC power.

The below diagram explains the different steps between power generation and consumption:

HowElectricitygetstous

HOW WATER WORKS

When water comes into your home or building, it enters through a water lateral and then goes through the water meter. All of the water that enters the building is measured. The water that passes through the water meter spins a built-in device. Each full spin of the device measures a specific amount of water; that amount is instantly shown on the display on top of the water meter in cubic meters. The only way for water to be measured is for it to flow through the water meter, physically spinning the device.

There are three main types of water meters—mechanical, electromagnetic, and ultrasonic. Each uses a different mechanism to determine the volume of water that your facility uses, but they all provide a reliable measurement. Meters measure the velocity of fluid moving through the measurement chamber. The size of the measurement chamber helps calculate the volume of fluid.

NEW: High Voltage Cabinet Prepaid meter

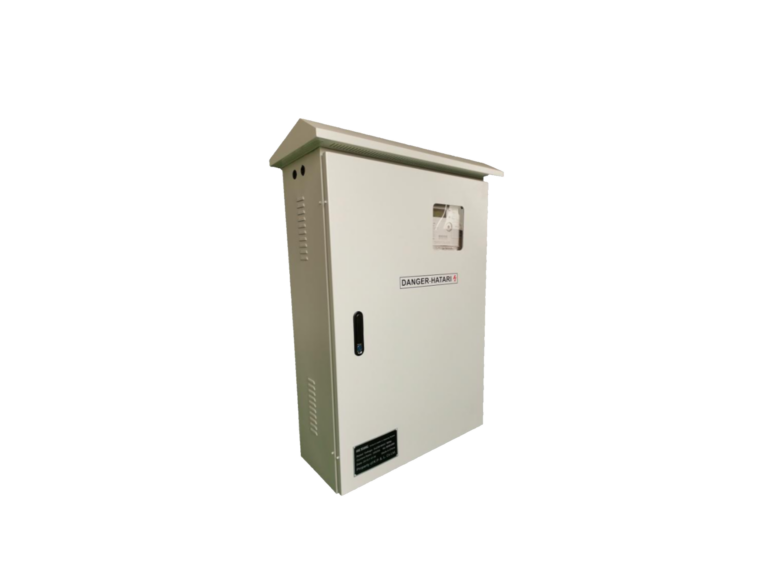

HXWLCC Cabinet Meter

HXWLCC is a robust stainless steel meter cabinet series, suitable for LV metering applications. its combination with metering, sampling and protection objects, represents a reliable compact solution.
Main Applications:

• C&I customer metering, management
• Boundary meter, Line loss analysis;
Feature:

Rated current 100A / 200A / 300A /400A /500A/600A

product catalogue

DESCRIPTION

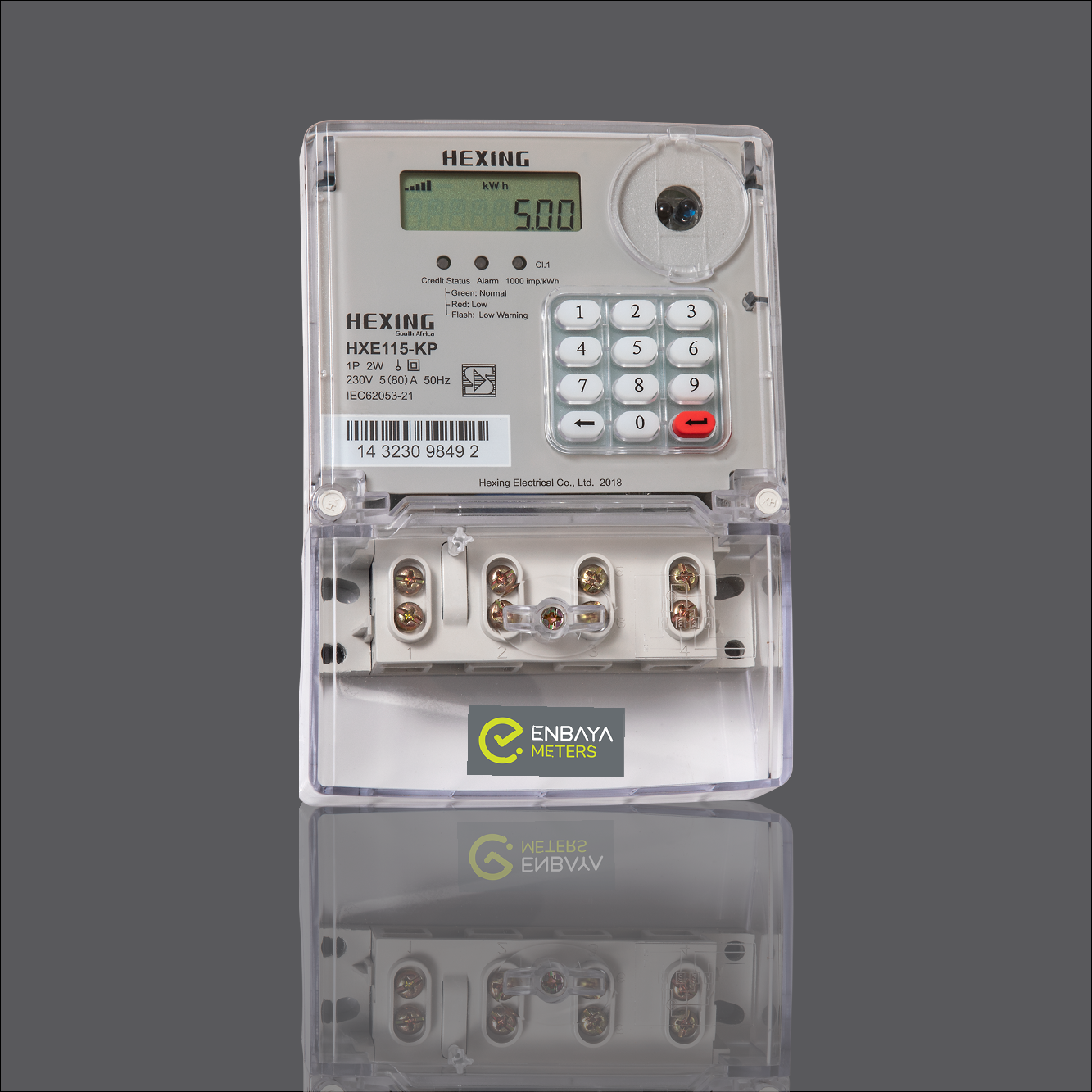

SINGLE PHASE RESIDENTIAL ELECTRICITY METER.

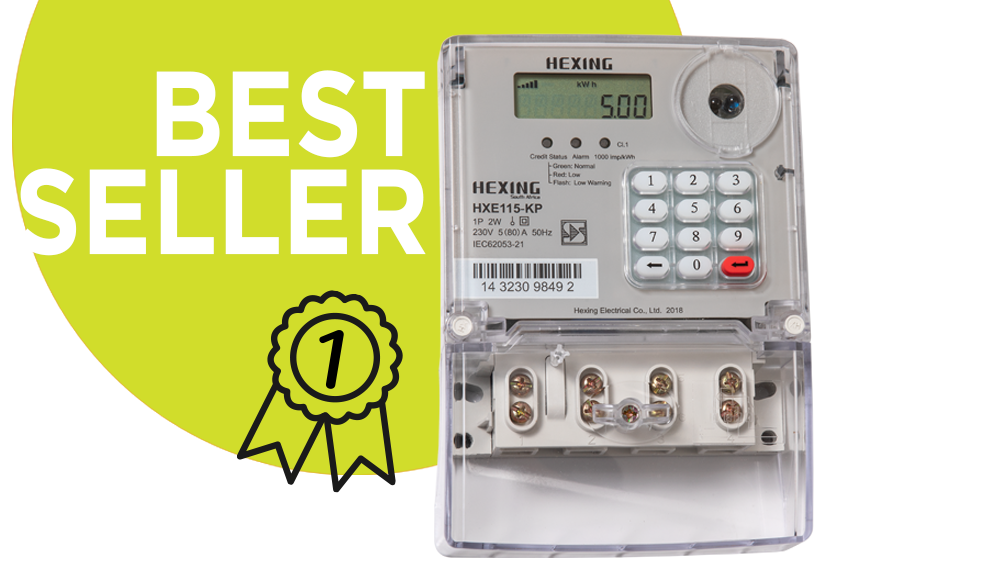

PPH23GT is the HEXING HXE115-KP which is a high quality, low cost single phase prepaid meter. It contains all the critical metering, token decryption, relay disconnection and reverse energy detection functionality. This meter is designed to wall mount along side a distribution board, it has an integrated User Interface and Keypad.

DOWNLOAD DATASHEET

ENQUIRE HERE

DESCRIPTION

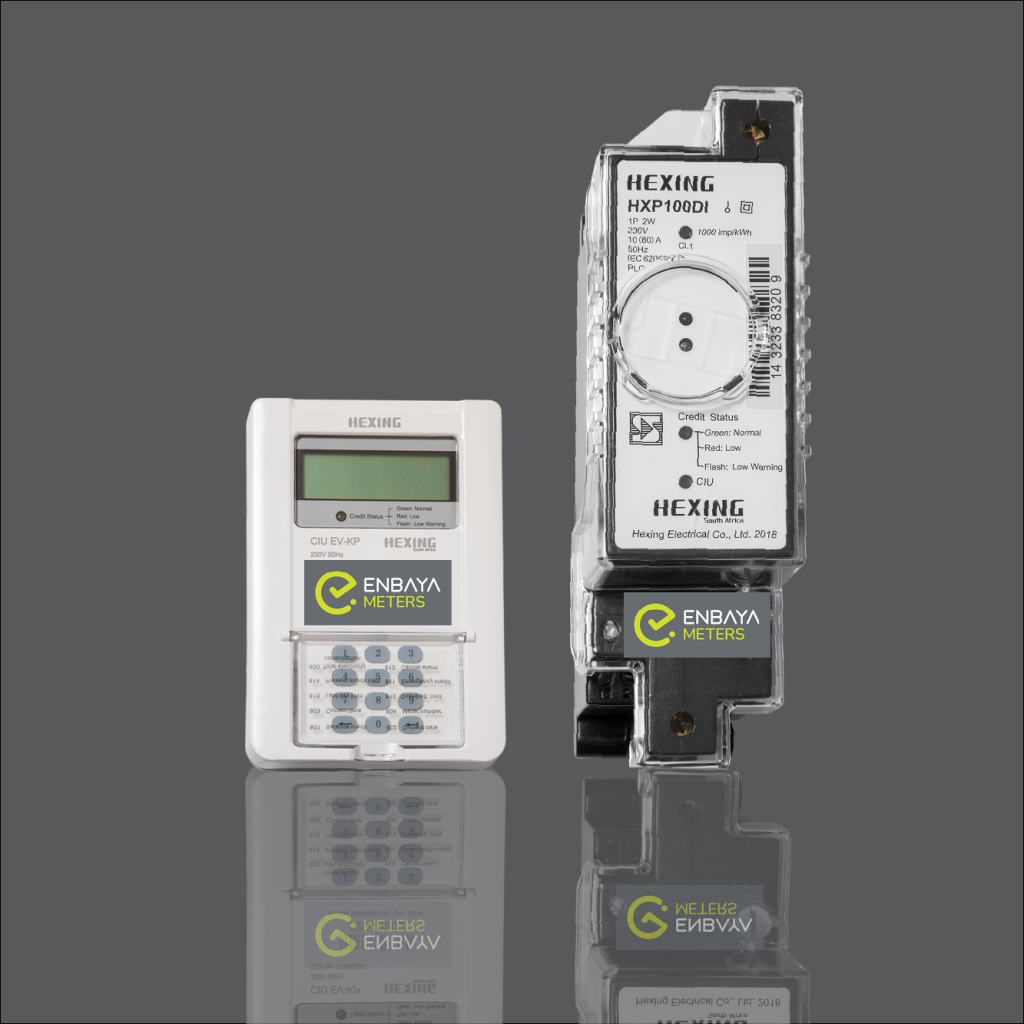

SINGLE PHASE DIN RAIL  ELECTRICITY METER WITH SPLIT KEYPAD

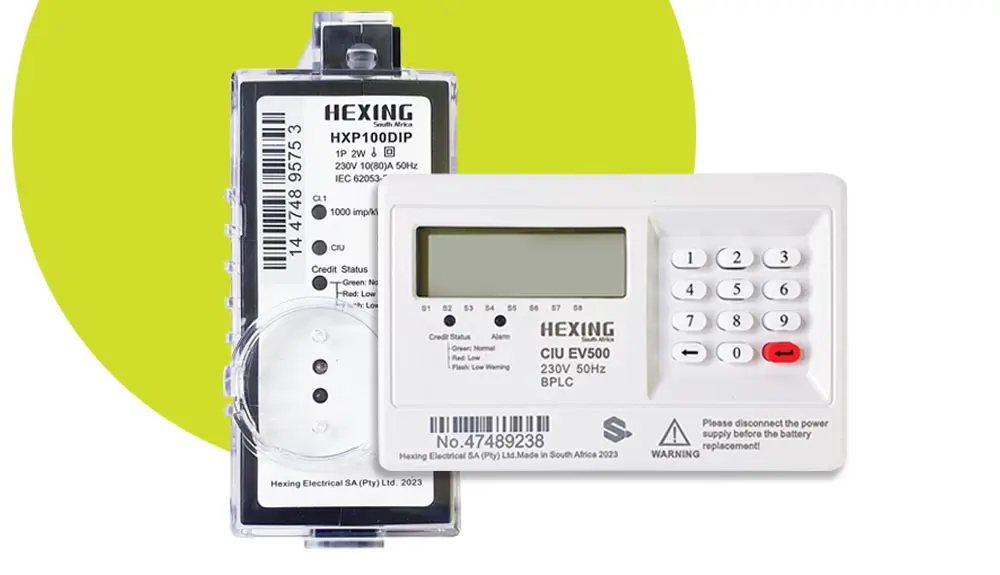

PPH44SDPA is an STS compliant split keypad meter that provides all the critical metering, token decryption,
relay disconnection and reverse energy detection
functionality.
The separate Energy
Management Unit (EMU) is a DIN rail mounted unit that can be installed in a secure cabinet.

DOWNLOAD DATASHEET

ENQUIRE HERE

DESCRIPTION

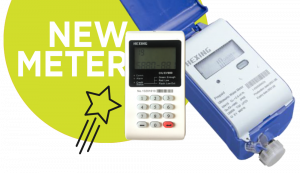

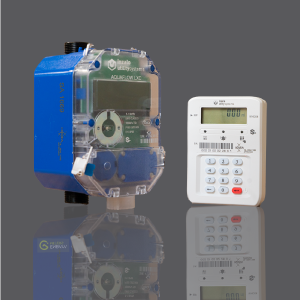

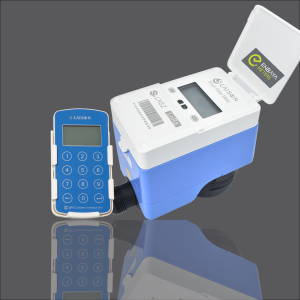

PREPAID RESIDENTIAL ULTRASONIC WATER METER

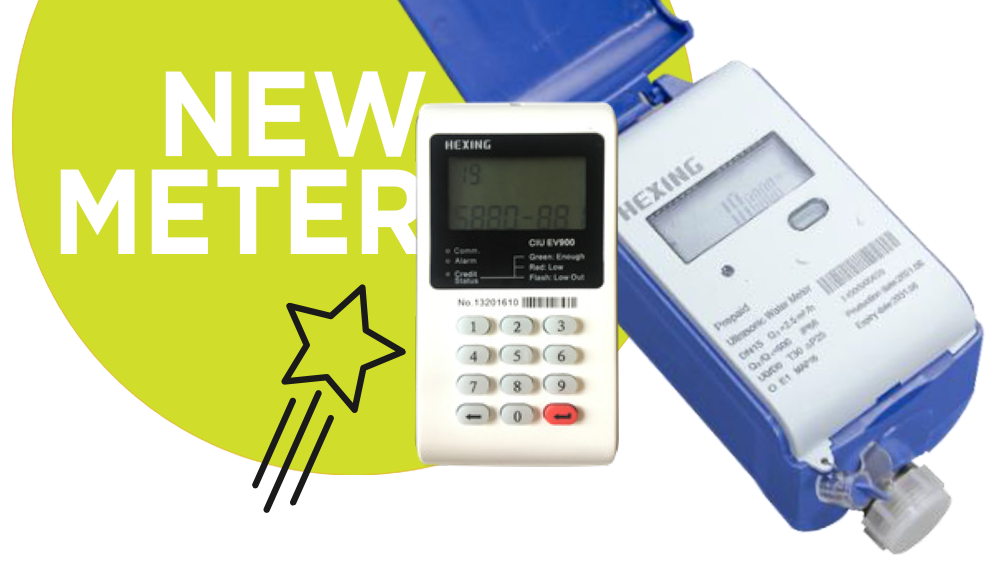

Hexing ZLINK Prepaid Ultrasonic Water Meter operates on ultrasonic measurement technology with keypad CIU (with user replaceable batteries) using International STS standard; guaranteeing Token Algorithm security, helping to eliminate bad debt and improve cash management. An emergency mode allows for emergency top up and recovery. Ultrasonic measurement ensures better accuracy and performance in all types and conditions of water.

DOWNLOAD DATASHEET

ENQUIRE HERE

DESCRIPTION

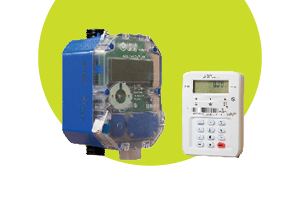

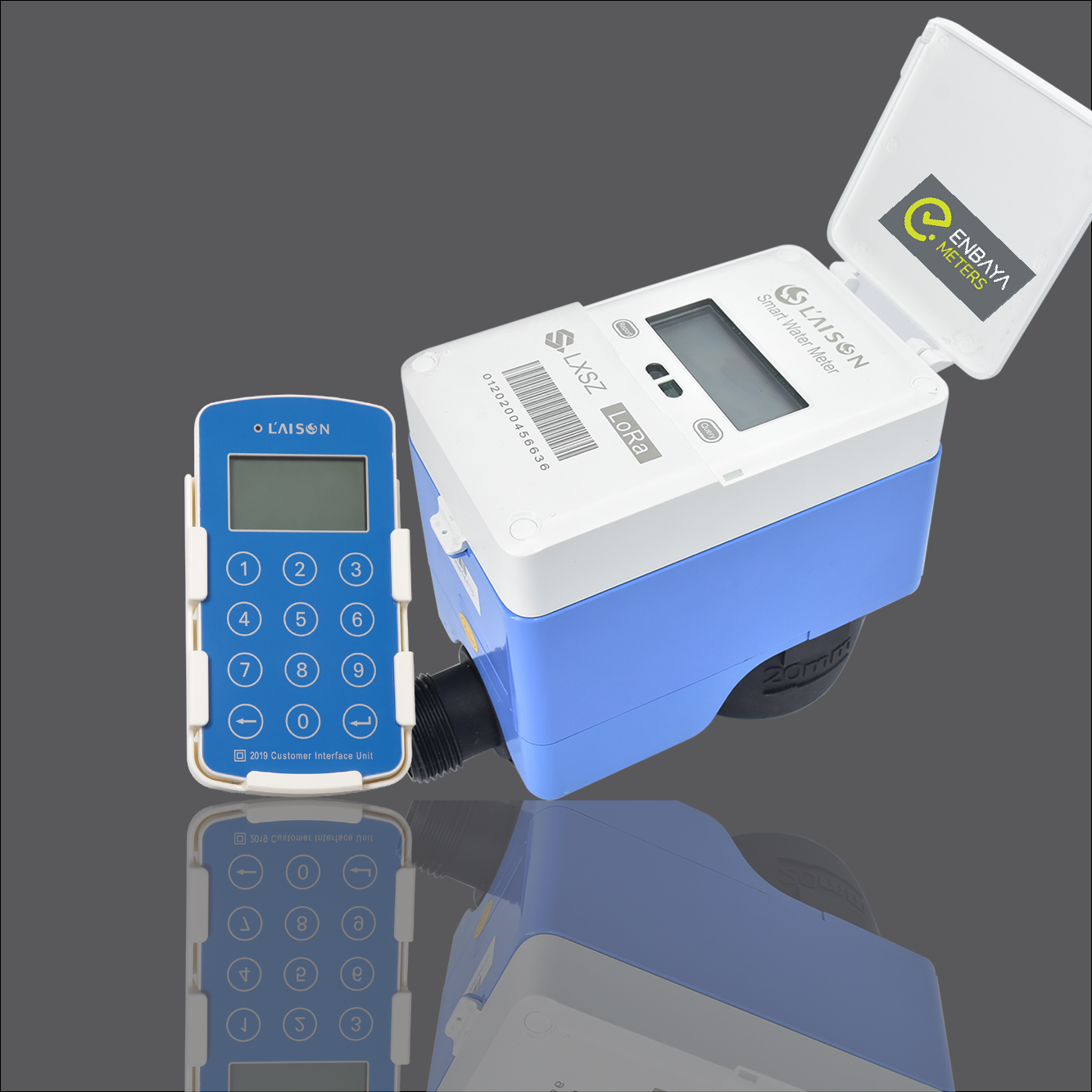

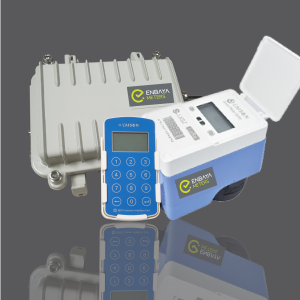

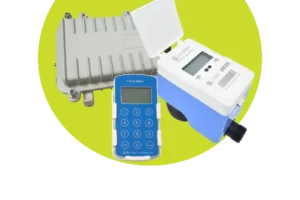

PREPAID RESIDENTIAL

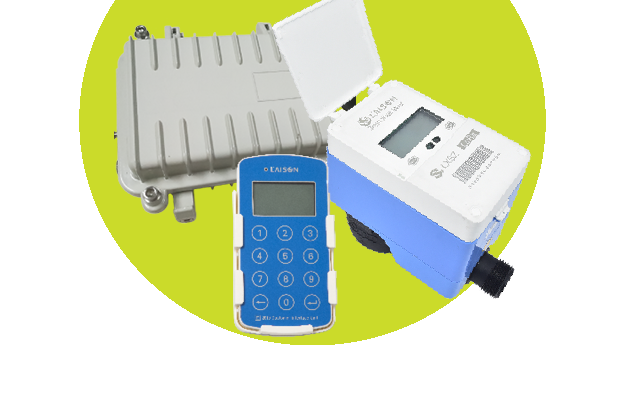

SPLIT TYPE STS AMI WATER METER consists of two parts, a Prepaid Water Meter, which complies to STS standard IEC 32055-41, and a separate keypad Customer  Interface Unit (CIU) with RF Wireless Communication and Dot Matrix Type LCD.

In addition, it supports Automated Metering Infrastructure (AMI) functions by way of a Data Concentrator Unit (DCU) that enables remote management and  data collection.

DOWNLOAD DATASHEET

ENQUIRE HERE

DESCRIPTION
SINGLE PHASE TWO WIRE ELECTRICITY METER.

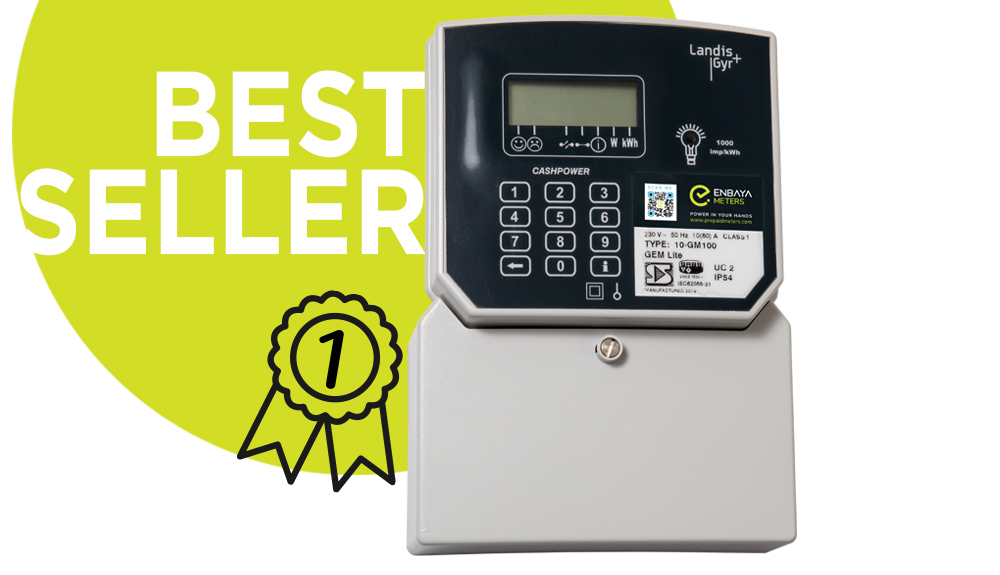

PPL23GTL, the Landis+Gyr GEM Lite Single Phase meter which was specifically developed to provide utilities with a quality, low cost, highly reliable STS keypad prepayment metering solution with excellent tamper proofing. This meter is mechanically sealed against tampering through the use of a factory-sealed screw plug in the rear of the panel and a utility-sealed wire seal on the front of the meter. In addition this meter is equipped with a tamper sensor.

DOWNLOAD DATASHEET

ENQUIRE HERE

DESCRIPTION

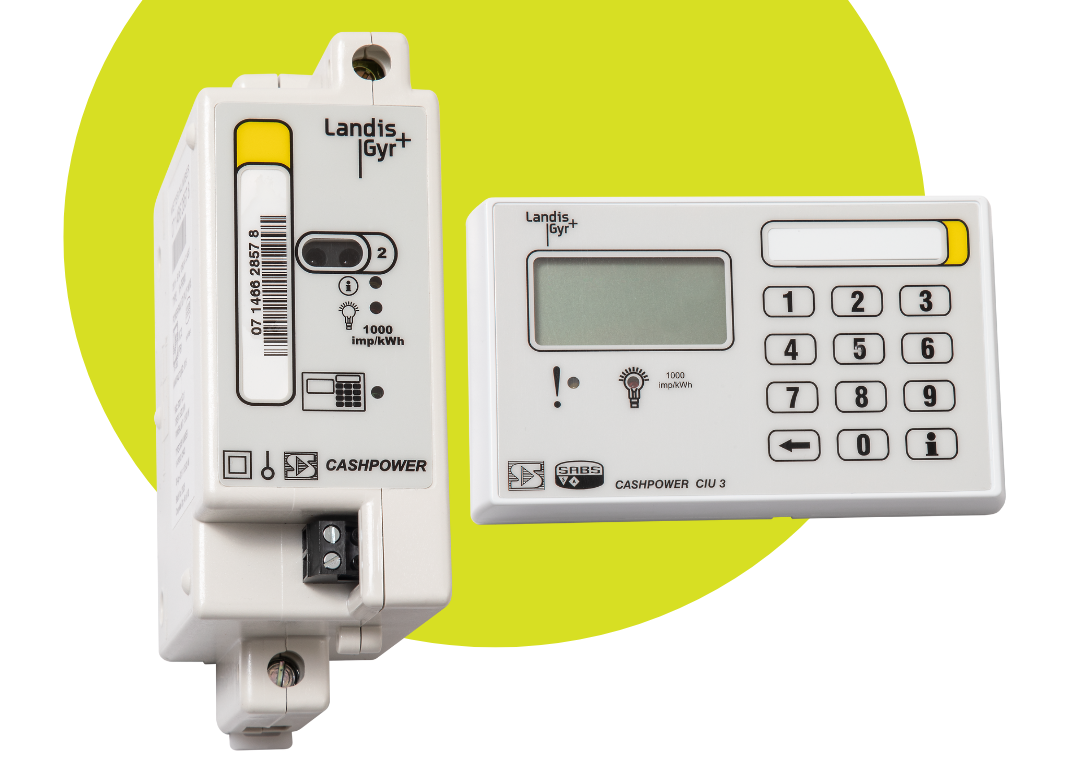

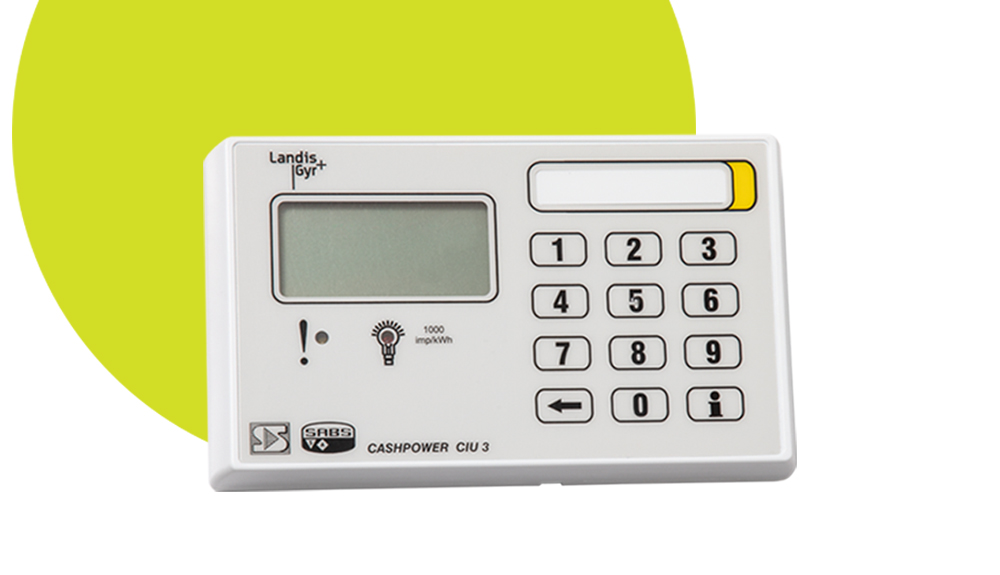

SINGLE PHASE SPLIT ELECTRICITY METER in DIN rail-mount housing.

Commonly used for new developments, this meter is ideal where housing is informal with the prepayment meter mounted in a pole-top enclosure with respective customer interface units conveniently mounted in the dwellings below. Fitted with shroud, the Power-Rail offers features that further enhance the utility’s revenue protection capability

USE CASES
In a sectional title units, staff accommodation, student accommodation.

DOWNLOAD DATASHEET

ENQUIRE HERE

DESCRIPTION

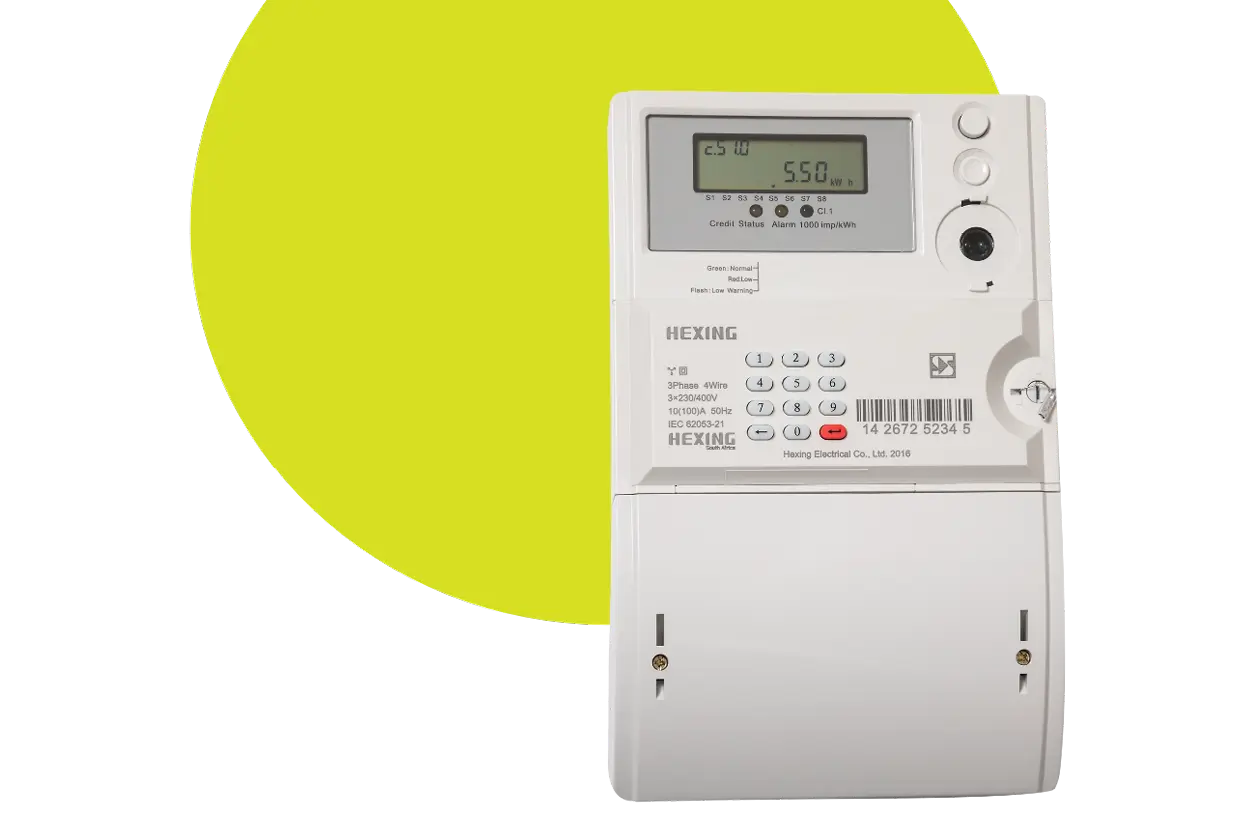

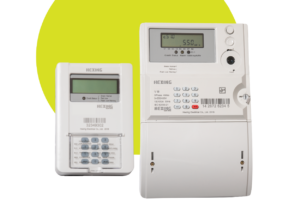

THREE PHASE NON-SPLIT ELECTRICITY METER

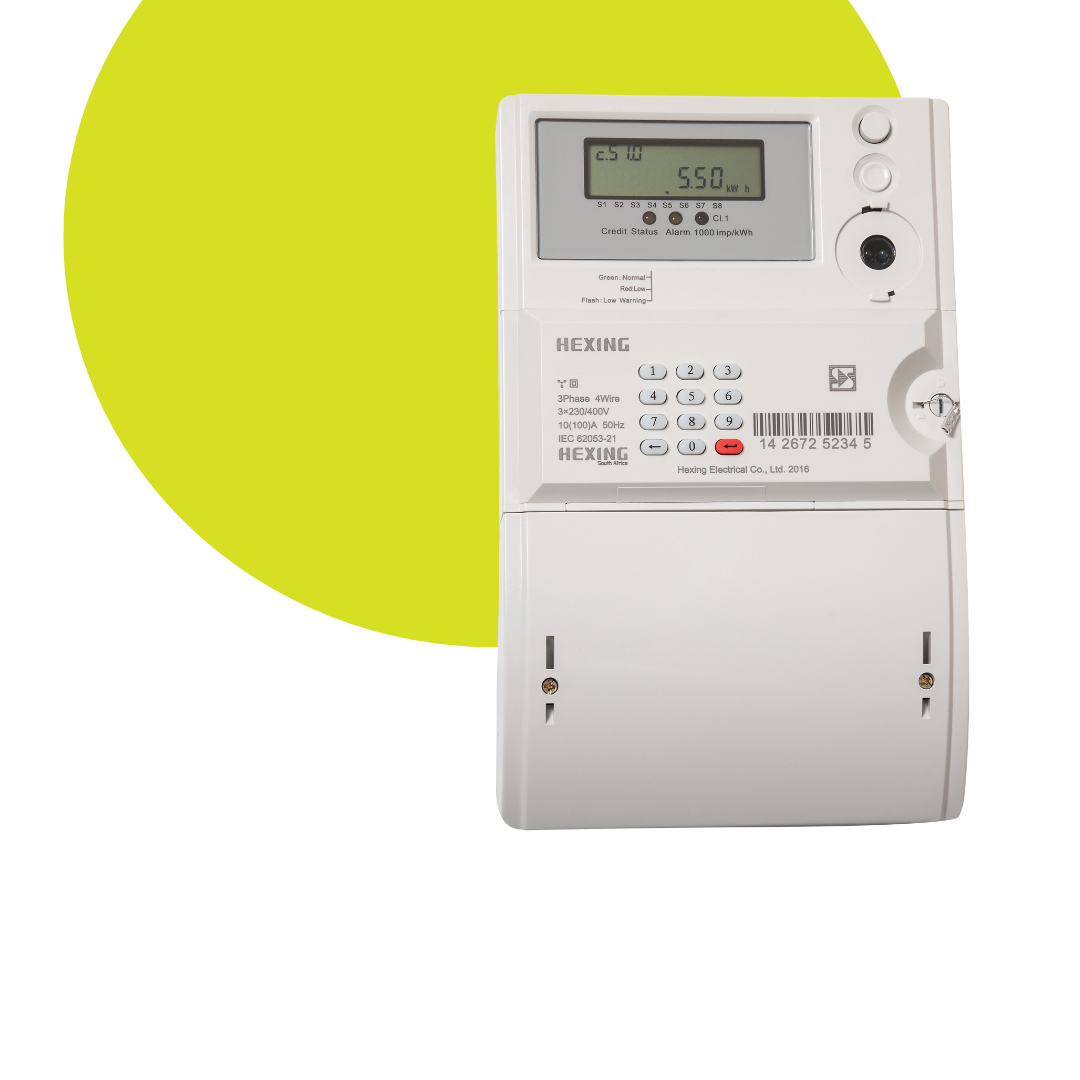

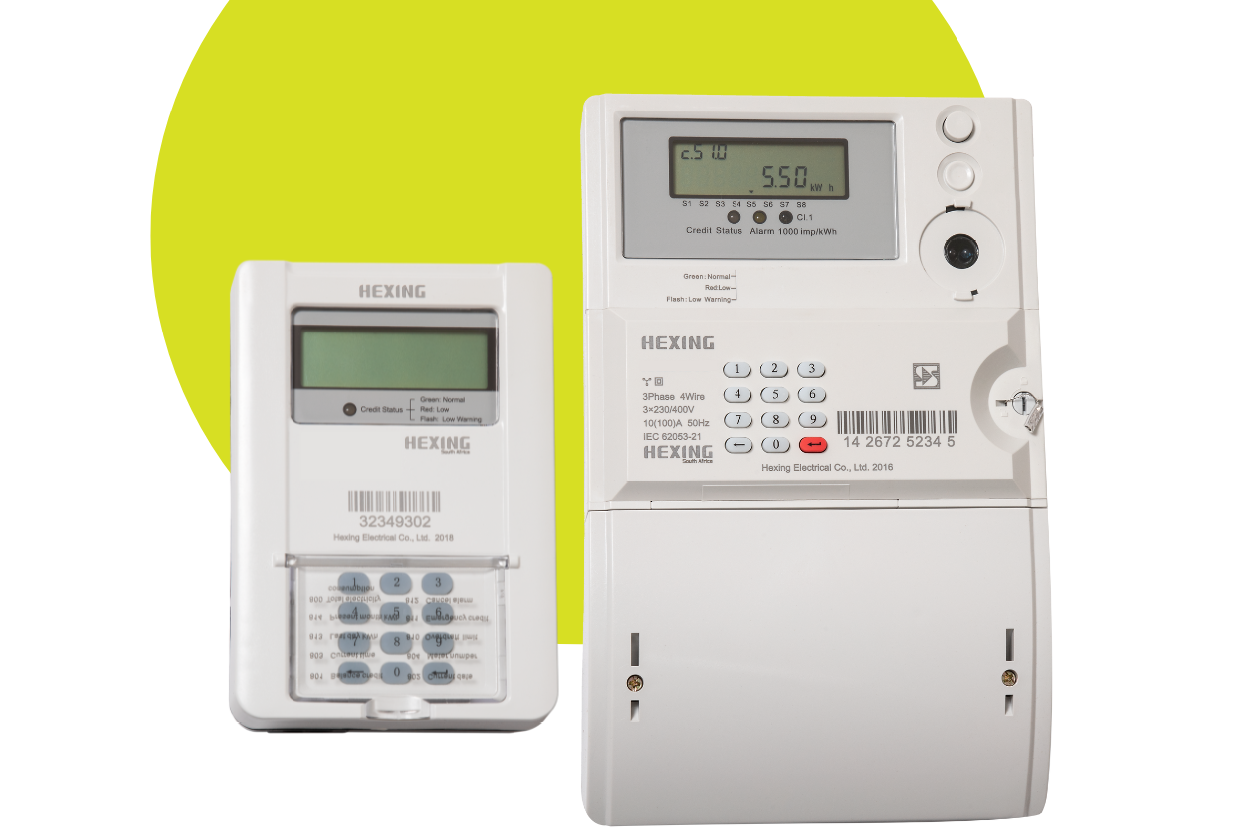

PPH32NS is the HEXING HXE 312-KP, is a three phase direct connection keypad prepayment meter with AMR/AMI enable. It is designed according to international STS and supported by a vending system. With PLC/RF communication, it can be used for energy consumption monitoring and credit charging.

DOWNLOAD DATASHEET

ENQUIRE HERE

DESCRIPTION

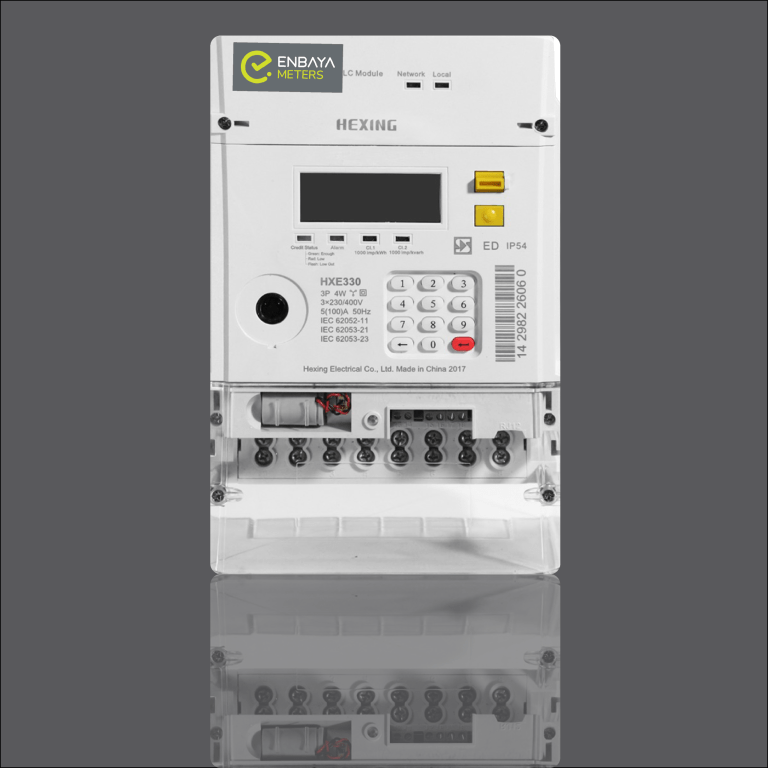

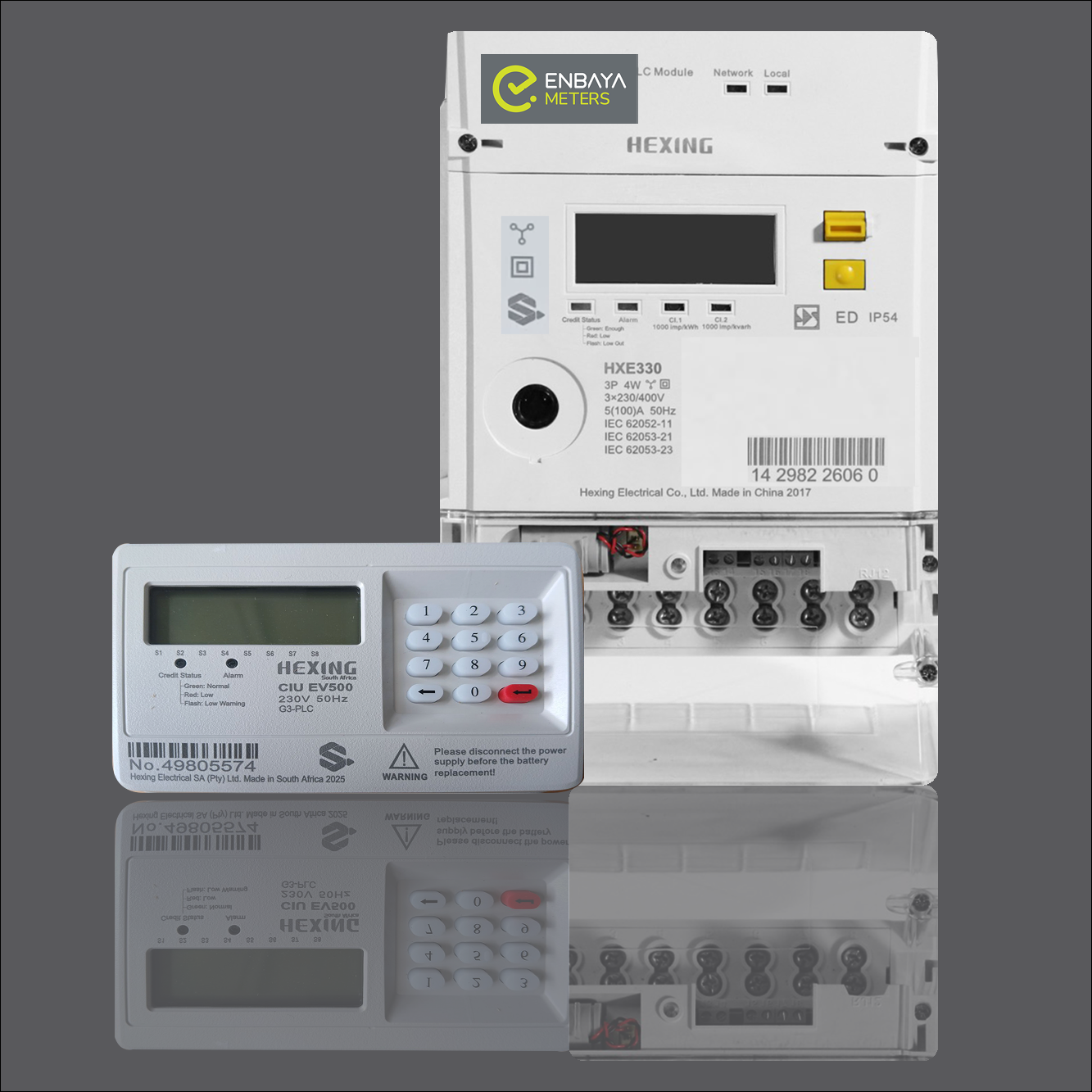

THREE PHASE RESIDENTIAL SPLIT PREPAYMENT METER

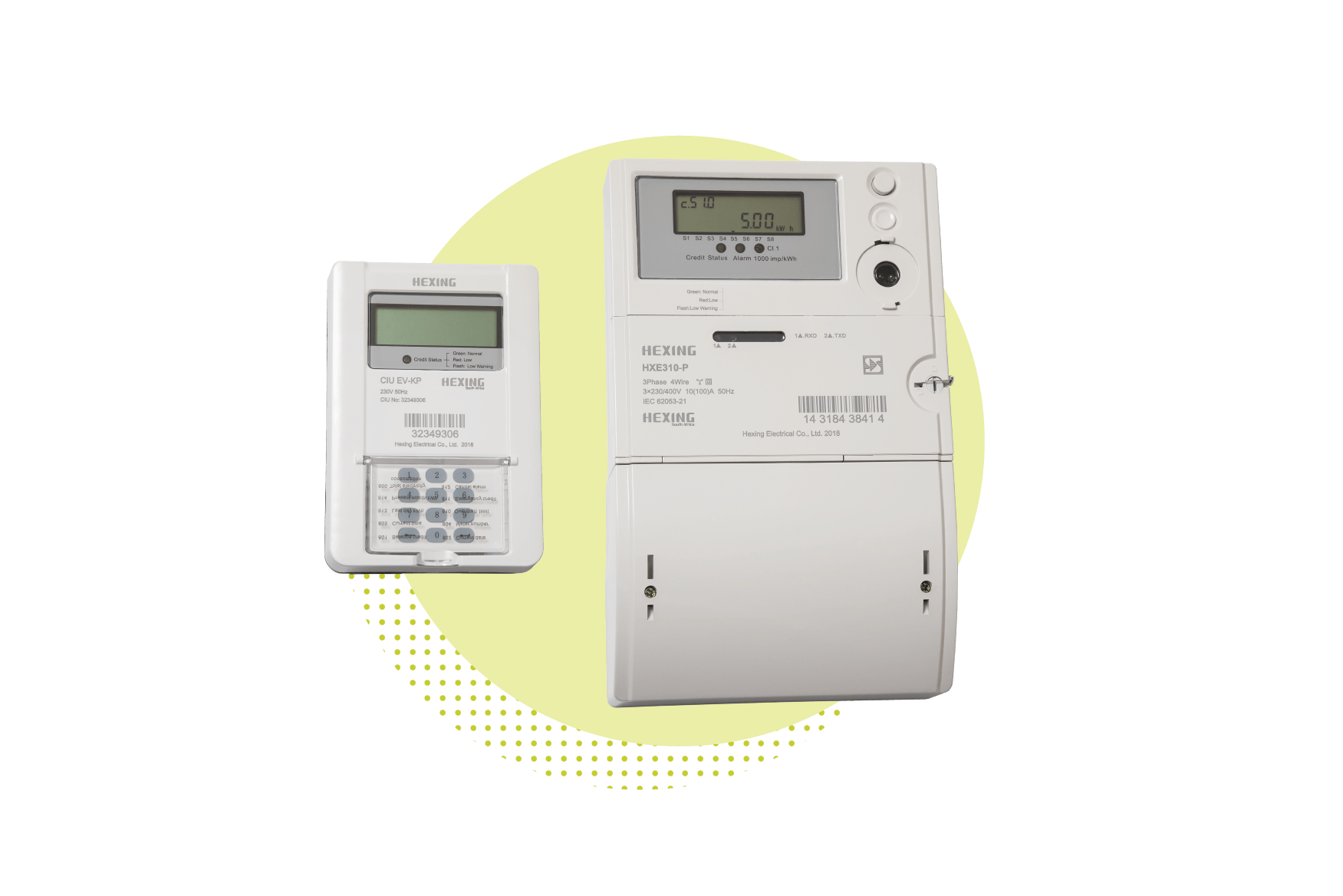

PPH32SPA is the HEXING HXE310-P. This Three Phase meter is a split PLC meter with keypad. It complies with STS standard and communicates with a CIU (handheld unit) by Mbus or PLC for convenient energy consumption monitoring and credit charging.
It features extensive tamper protection.

DOWNLOAD DATASHEET

ENQUIRE HERE

DESCRIPTION

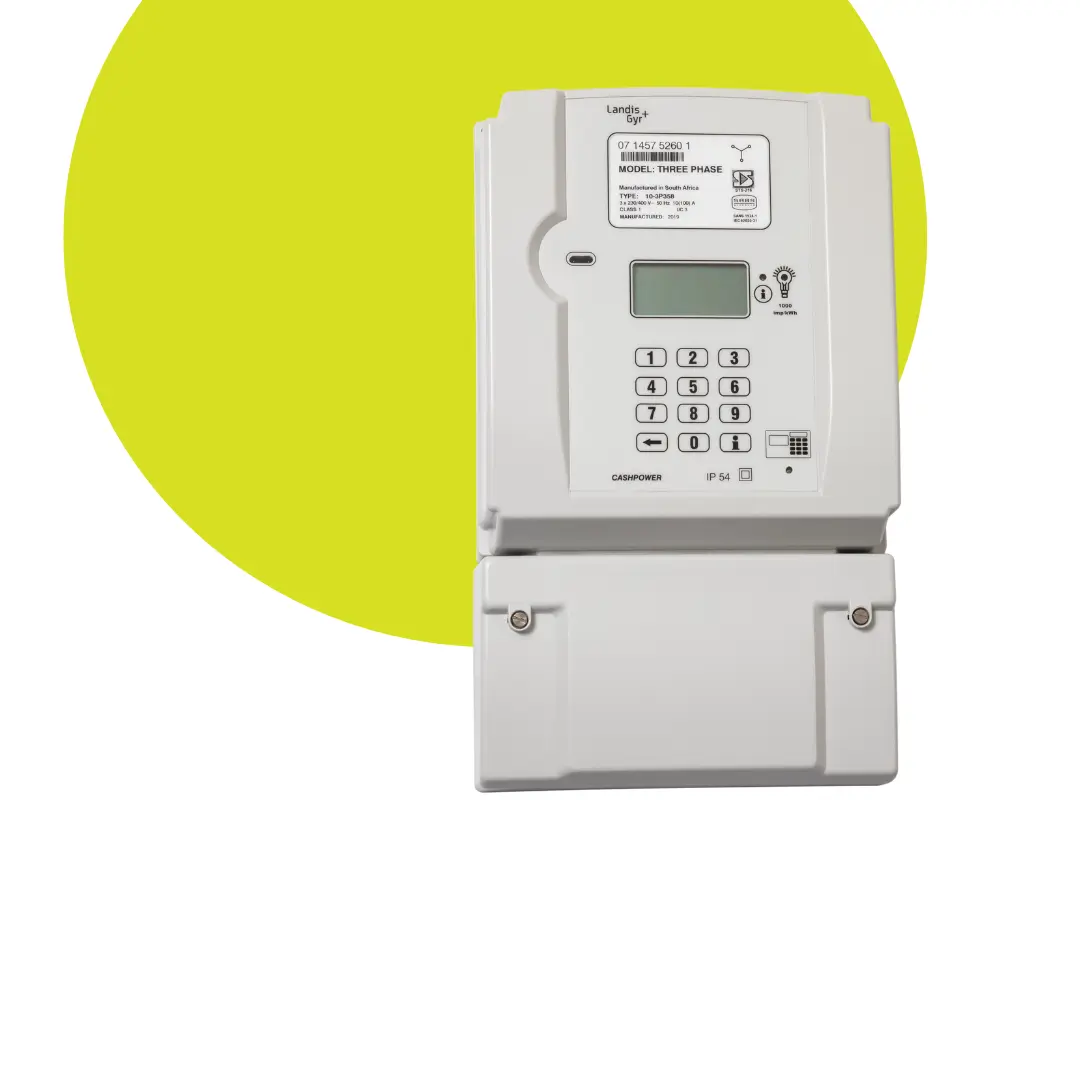

THREE PHASE NON-SPLIT ELECTRICITY METER

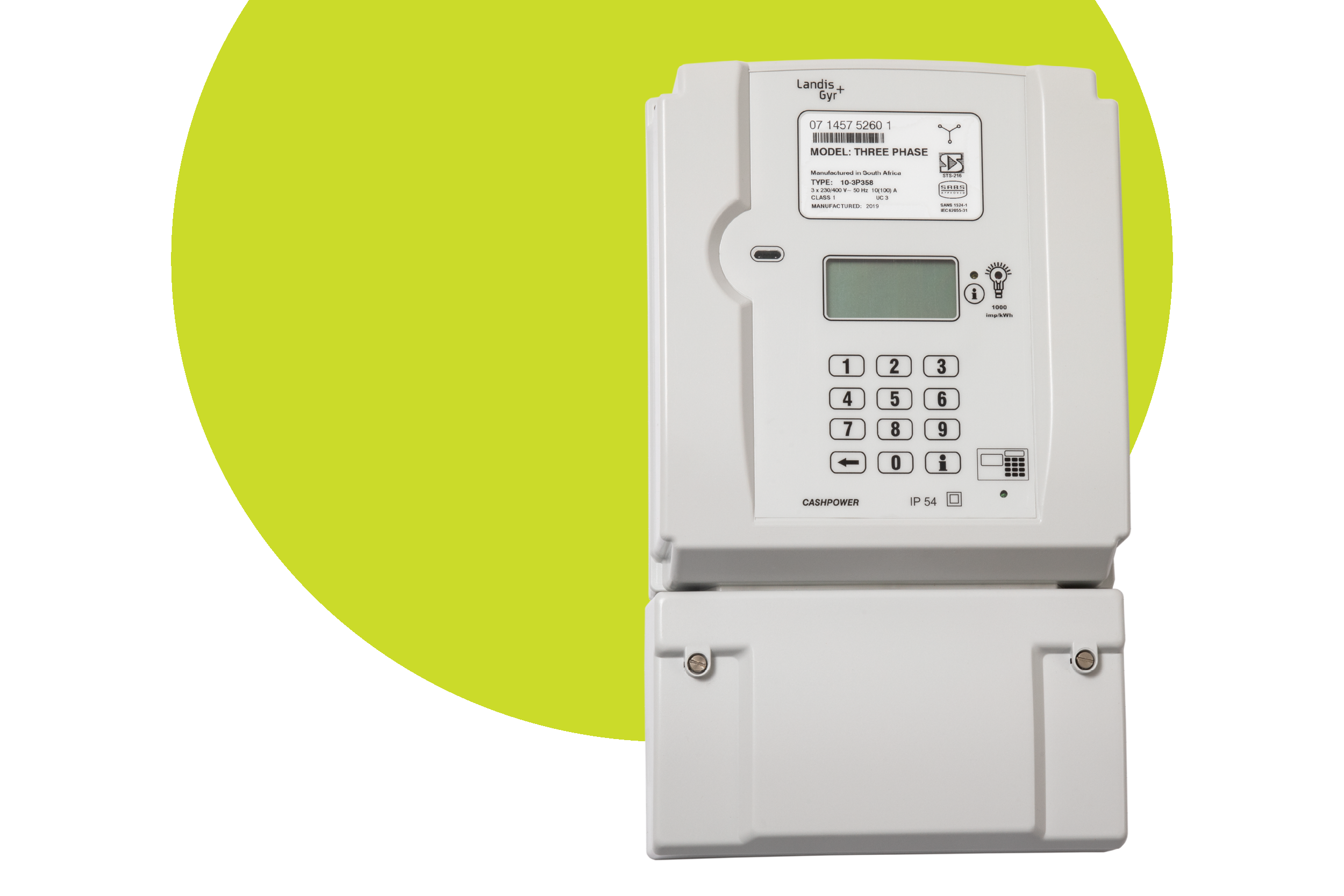

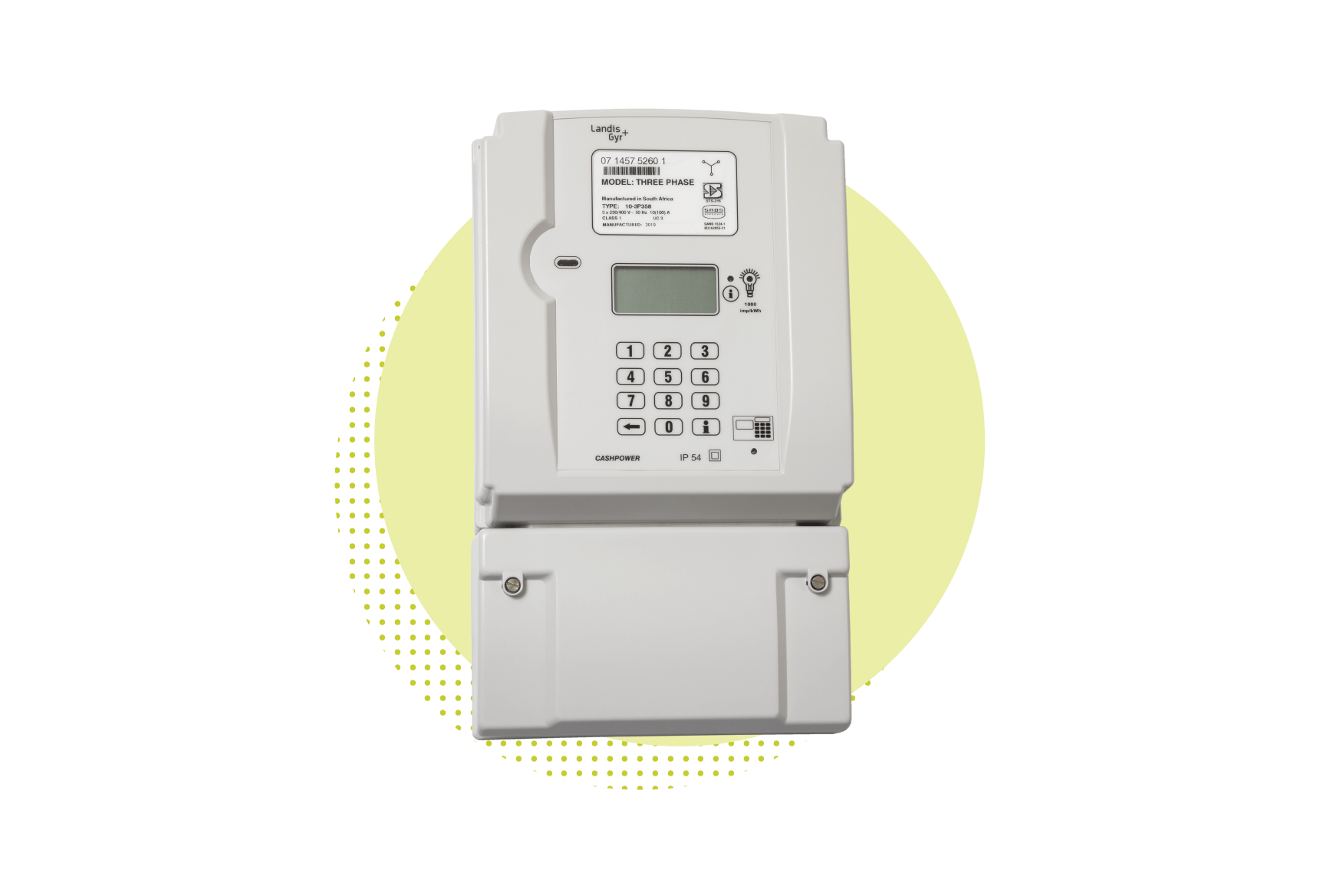

PPL32NS is a 3-phase, 100 Amp/Phase, Integrated Keypad, Wall Mounted, Prepayment Electricity meter. PPL32NS is suitable for use in medium commercial applications where over voltage protection is a requirement.

USE CASES
A cottage on my property, For our body corporate, In a flat, In a sectional title unit, My main house, Other, Staff accommodation, Student accommodation

DOWNLOAD DATASHEET

ENQUIRE HERE

DESCRIPTION
THREE PHASE SPLIT ELECTRICITY METER
(250 AMPS/PHASE)

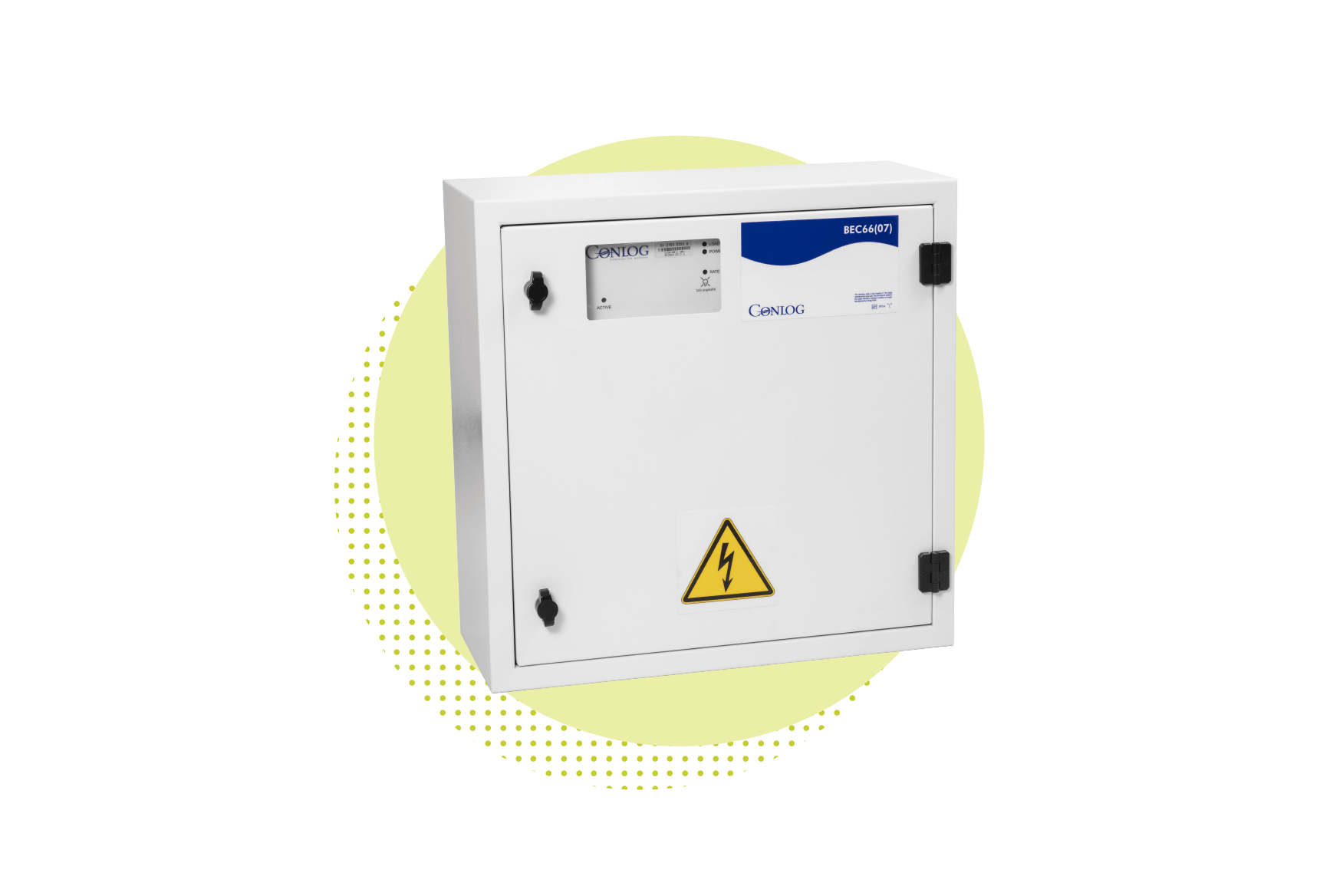

The BEC33HC is a three-phase, four wire, class 2 and split configured prepayment electricity meter. The meter provides a cost effective control of loads up to 250A per phase and is an ideal unit for industrial and commercial applications requiring enhanced security and convenience.

This product has been discontinued. We carry stock for repairs only. Refer to Hexing HXWLCC as replacement.

EQUIRE HERE

DESCRIPTION

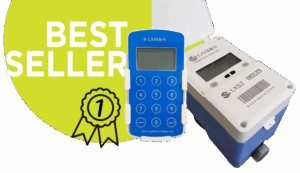

PREPAID RESIDENTIAL COLD-WATER METER WITH KEYPAD

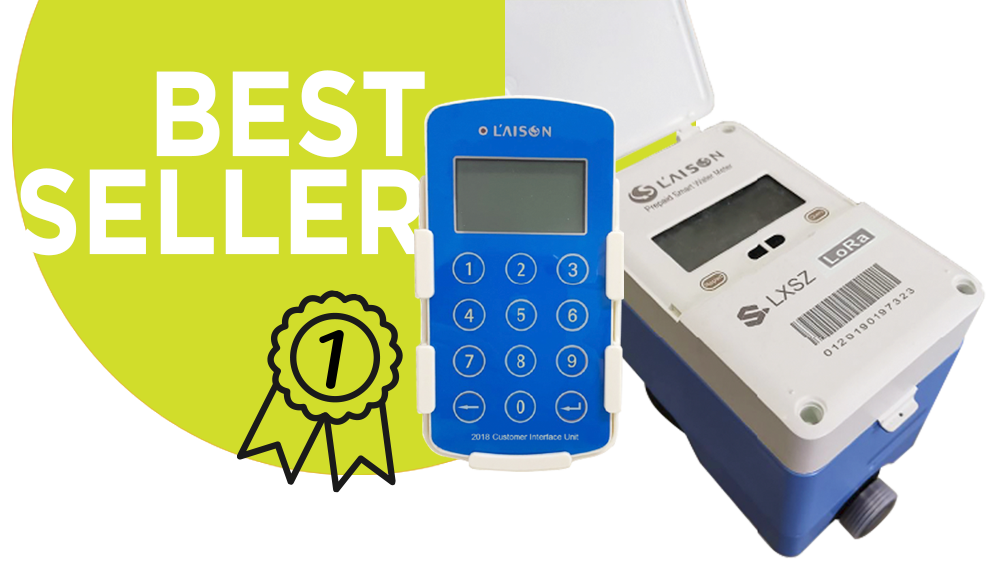

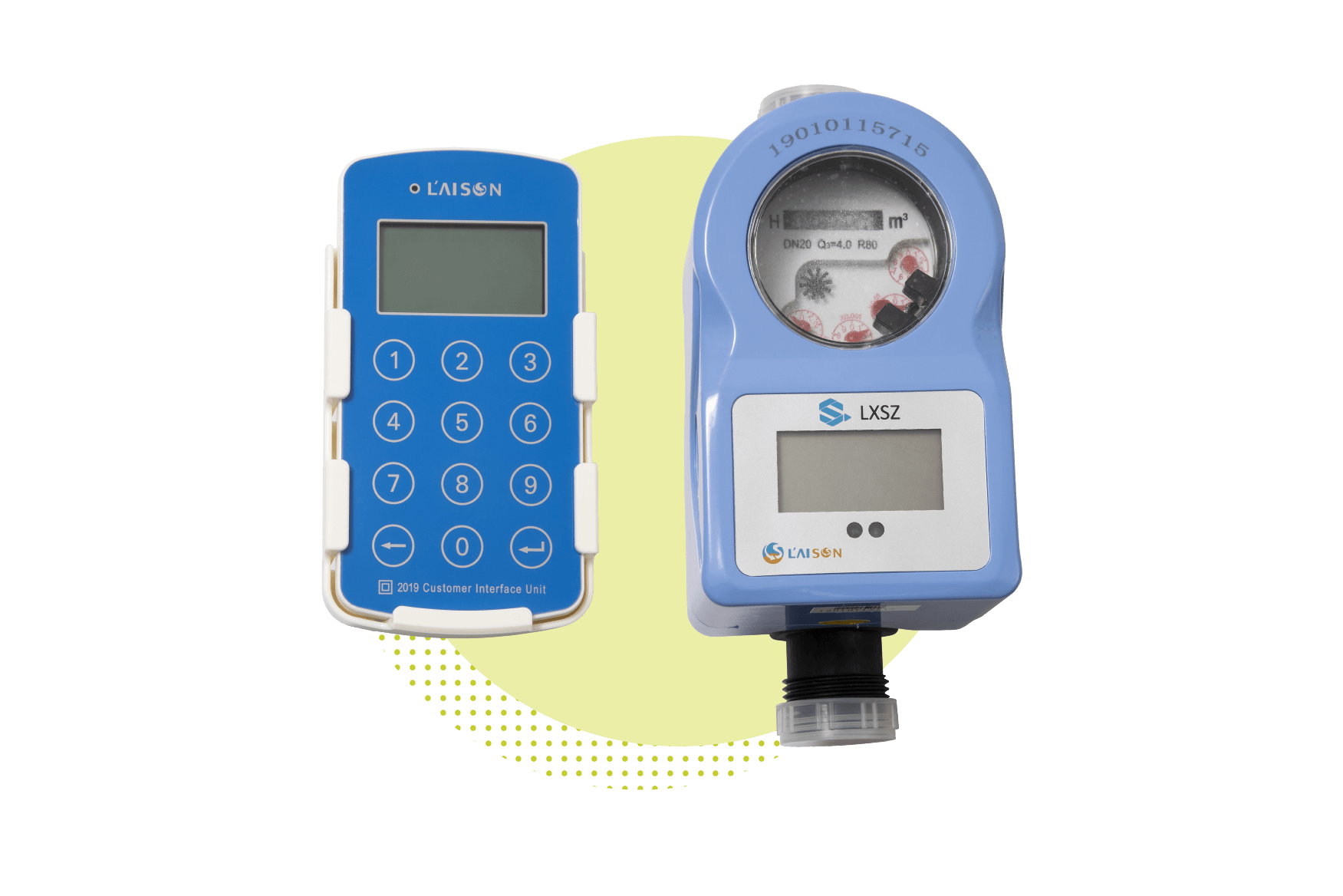

PPLA23UN (Prepaid Cold Water Meter) and PPLA23UN H (Prepaid HOT Water Meter) are Water Meter and Management Devices that provide an intelligent electronic control valve. PPLA23UN is suitable for controlling the flow of water to domestic or small commercial consumers at full pressure up to 50℃.

This product has been discontinued. We carry stock for repairs only.

DOWNLOAD DATASHEET

ENQUIRE HERE

DESCRIPTION

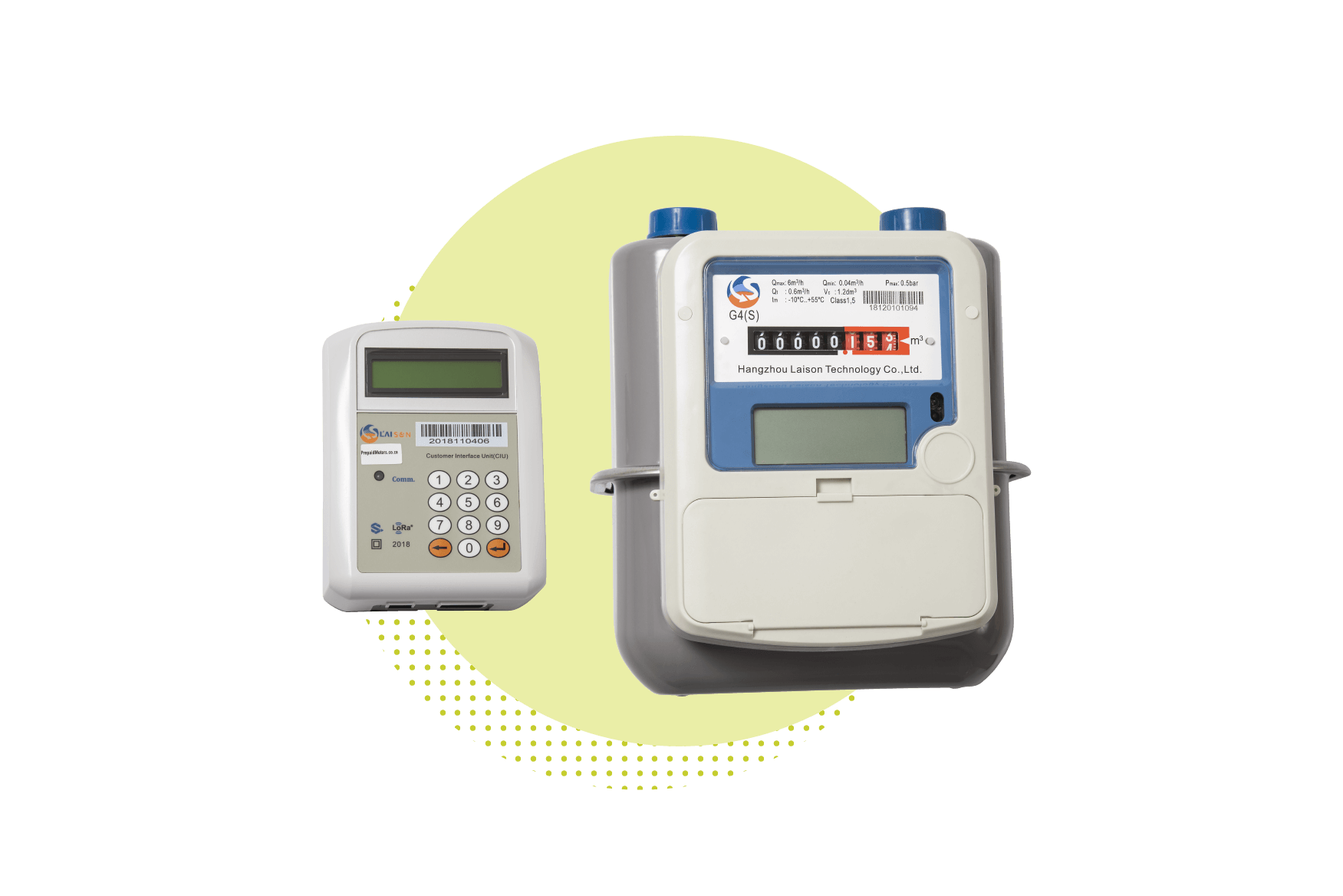

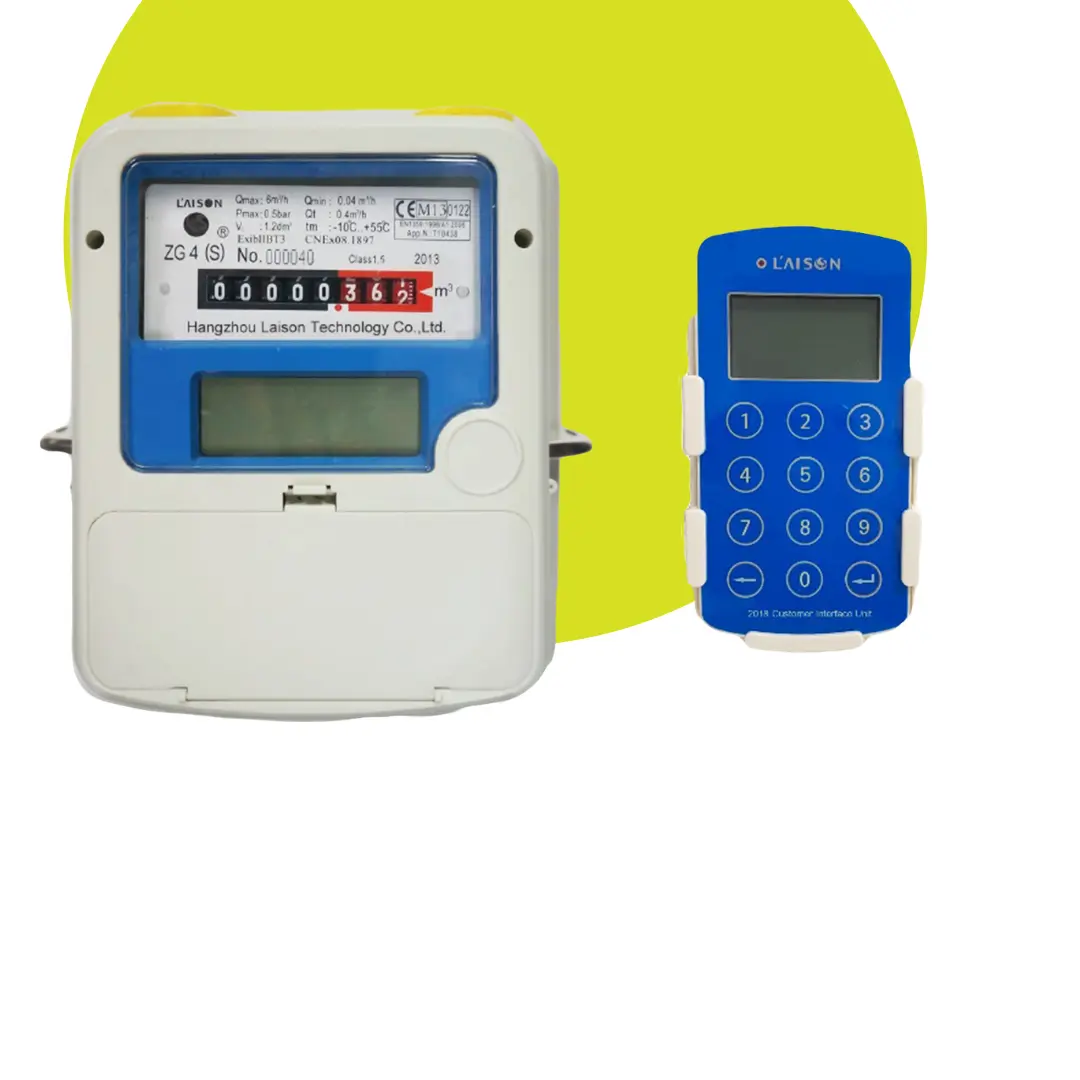

PREPAID LPG & NATURAL GAS METER WITH KEYPAD

This meter is one of its’ kind STS Gas meter that can be purchased in one of the two models; for LPG gas or Natural gas prepayment.

USE CASES
A cottage on my property, For our body corporate, In a flat, In a sectional title unit, My main house, Other, Staff accommodation, Student accommodation

DOWNLOAD DATASHEET

ENQUIRE HERE

Featured services

At Enbaya, our solutions are tailored to meet your specific requirements, needs and environment. Our additional services have been created with this in mind – to help you maximise the power of sub-metering.

When things go wrong, they usually go wrong from the start. Our installations are provided by experienced technicians and come with a quality guarantee.

To help you avoid unforeseen call out fees and inexperienced or unethical technicians, we offer optional maintenance plans on all our meters. Your peace of mind is our priority.

For in-depth overview, consultation and recommendations for existing sites or potential installations we offer pre- and post-sales site inspections and audits.

To bring utility collections back to health all the way from the physical utility level to the financial level we offer residential and commercial consultations, suggested plans and system implementations for users, entire buildings or estates.

We believe that knowledge is power and that sharing that knowledge can bring a level of quality assurance and professionalism to the industry and communities at large. Our online training through Enbaya Academy offers practical and valuable skills to a range of utility management stakeholders.

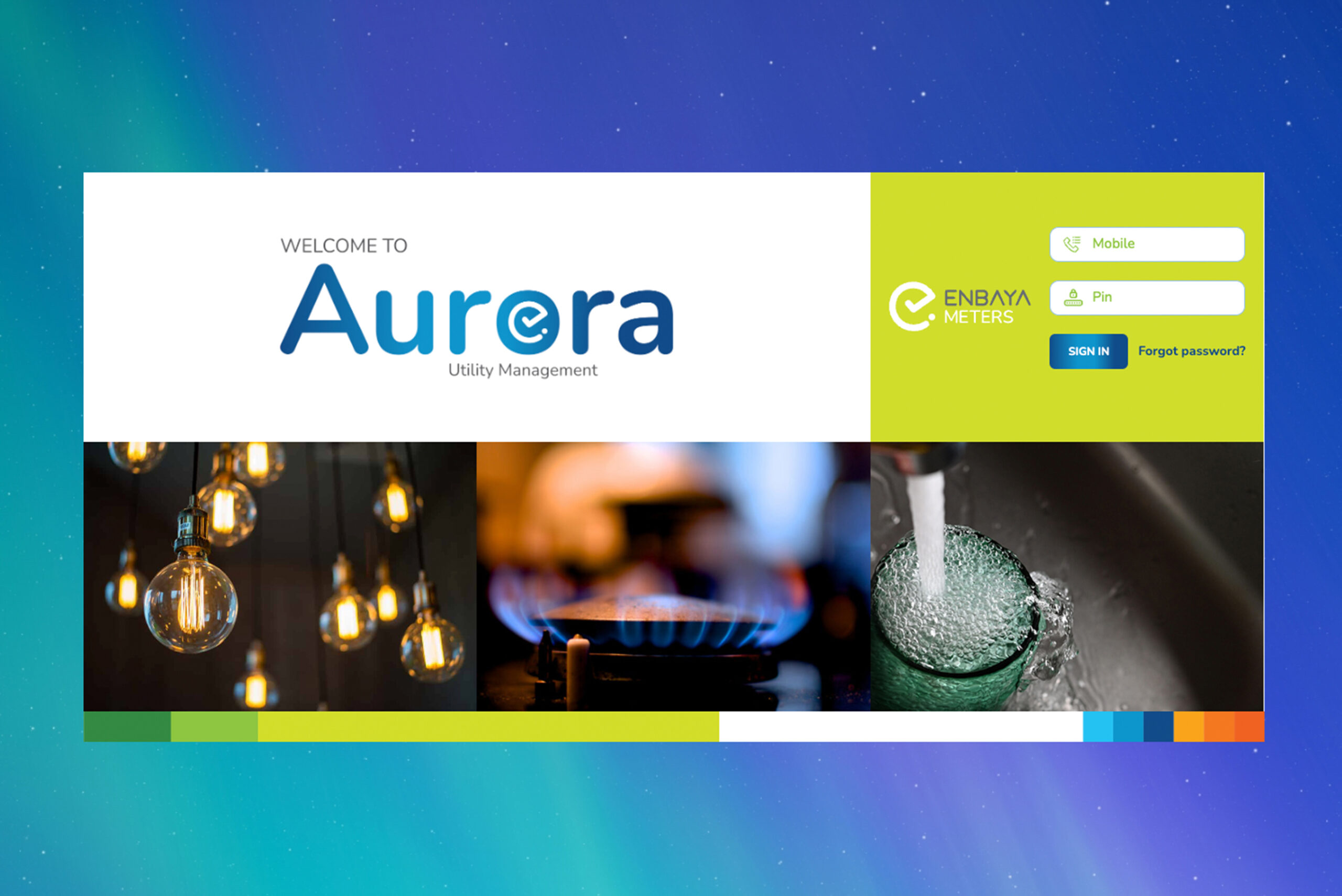

The Enbaya SaaS platform, Enbaya Cloud, offers cloud-based utility management to property investors, managers and developers for broad application. Popular features of this service include open-source metering technology, compliance driven functionality and utility financial management.
